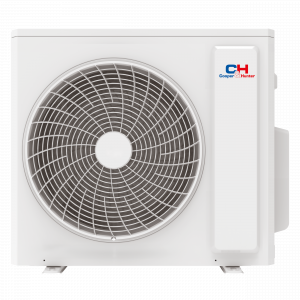

Nordic Multi Light R32 NG. Outdoor units CHML-U42RK4-NG

охолодження 12.1 кВт
обігрів 13 кВт
Дізнатись ціну

  • Operating range of the system is 50-150% of the rated capacity of the outdoor unit;
  • Safe start in the range from 96 V to 260 V;
  • Stable Frequency Control technology - smooth and stable operation at ultra-low frequencies (15 Hz);
  • Noise Analysis Technology - virtually silent operation of indoor and outdoor units;
  • Wide temperature range of efficient operation: from - 20ºC for heating and up to 48ºC for cooling;
  • Automatic new generation Intelligent Preheating anti-icing system. Unlike the usual “time-based” defrosting scheme - with an average of 10 minutes of defrosting per 50 minutes of compressor operation, the defrosting process is started only when it is really necessary. This state-of-the-art technology obviously reduces energy losses due to unnecessary defrost cycles;
  • Class A energy efficiency.

Технічні характеристики

IDU to connect ` ` 2-5
Capacity Cooling kW 12.10
` Heating kW  13.00
Power supply ` ` ~220-240 V/50 Hz/1~
Airflow rate ` m³/h 3800
Sound level ` dB(A) 58
Dimensions (WxDxH) ` mm  1020X427X826
Packed dimensions (WxDxH) ` mm 1093X497X885
Weight ` kg 73/80
Refrigerant type ` ` R32
Temperature range Cooling °C -15...+43
` Heating °C -22...+24
Maximum pipeline length ` m  70/20
Maximum pipeline heigth ` m 15
Distance between fixings ` mm 570
No extracharge pipeline distance ` m 30
Gram per meter extra dischrge ` gram/m 20
