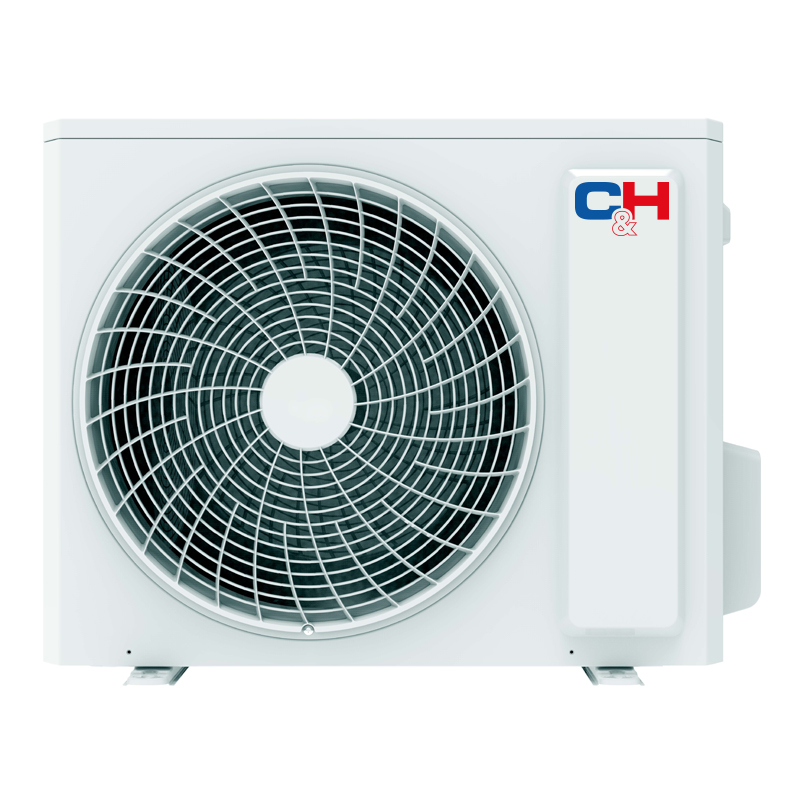

Nordic Multi Light R32 NG. Outdoor units CHML-U14RK2-NG

охолодження 4.10 кВт
обігрів 4.40 кВт
Дізнатись ціну

  • Operating range of the system is 50-150% of the rated capacity of the outdoor unit;
  • Safe start in the range from 96 V to 260 V;
  • Stable Frequency Control technology - smooth and stable operation at ultra-low frequencies (15 Hz);
  • Noise Analysis Technology - virtually silent operation of indoor and outdoor units;
  • Wide temperature range of efficient operation: from - 20ºC for heating and up to 48ºC for cooling;
  • Automatic new generation Intelligent Preheating anti-icing system. Unlike the usual “time-based” defrosting scheme - with an average of 10 minutes of defrosting per 50 minutes of compressor operation, the defrosting process is started only when it is really necessary. This state-of-the-art technology obviously reduces energy losses due to unnecessary defrost cycles;
  • Class A energy efficiency.

Технічні характеристики


IDU to connect ` ` 1..2
Capacity Cooling kW 4.10
` Heating kW 4.40
Power supply ` ` ~220-240 V/50 Hz/1~
Airflow rate ` m³/h 2300
Sound level ` dB(A) 52
Dimensions (WxDxH) ` mm 822X300X550
Packed dimensions (WxDxH) ` mm 869X395X594
Weight ` kg 30/32.5
Refrigerant type ` ` R32
Temperature range Cooling °C -15...+43
Heating ` °C -22...+24
Maximum pipeline length ` m 40/20
Maximum pipeline heigth ` m 15
Distance between fixings ` mm 512
No extracharge pipeline distance ` m 10
Gram per meter extra dischrge ` gram/m 20
